Huge savings potential: approximately 20 to 35% of global electricity consumption goes to lighting (depending on building and activity).
EasyDim2 helps you saving energy
Easydim2 is a local light control system you can easily save up to 60% energy with:

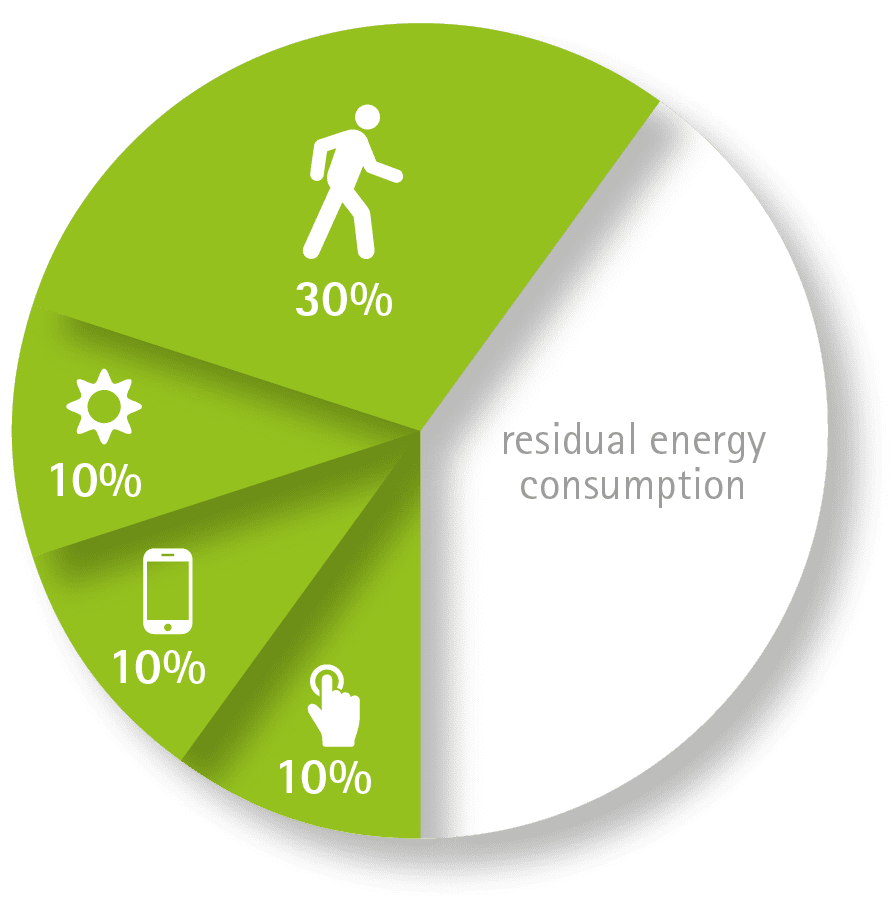

EasyDim2 energy savings
While the movement and daylight sensors manage your light automatically, you can also manually adjust the lighting to specific, sometimes varying needs via the app and the push buttons.
- Movement detection
- Daylight-dependent light control
- EasyDim2 app
- Push buttons
EasyDim2 consists of a control unit with multisensory (CTRL) that is connected to (DALI-controlled) lighting luminaires.
![Energy-saving lighting solutions - ETAP Lighting](/sites/default/files/uploads/C1C20-B_0.jpg)
The control unit receives signals from the environment (daylight and human movement) and controls the lighting according to an optimized scenario.
![beweging](/sites/default/files/uploads/beweging_daglichtregeling.png)
You can also manually manage the control unit using the EasyDim2 app or push buttons.
![app en drukknoppen](/sites/default/files/uploads/app_drukknoppen.png)
All luminaires are divided over 3 DALI circuits (DA1, DA2, DA3). Each circuit works as an area, within which all luminaires react in the same way, according to a fixed scenario.
![Hoe werkt EasyDim2?](/sites/default/files/uploads/easydim_schema_Tekengebied%201.png)
![werking control unit EasyDim2](/sites/default/files/uploads/werking-control-unit_EN_easydim2_0.png)
The sensor range is:
- up to 20 m² for small fine movements (office applications)
- up to 48 m² for larger movements (education)
- maximum height of 3,5 m
For each DALI line, you can
- connect a maximum of 15 luminaires (x 3 DALI lines = 45 luminaires);
- add up to 3 extension sensors;
- connect a maximum of 3 push button interfaces.
![sensorbereik](/sites/default/files/uploads/sensor_bereik-01.png)
Depending on the installation and application, you can have the push buttons programmed in the following way:
- Four different lighting scenarios (button 1 to 4).
e.g. dimming scenarios in classrooms or auditoria for using blackboards, giving presentations, … - Control three lighting areas individually (buttons 1 to 3) or all areas together (button 4) by a short push (switch on or off) or a long push (dimming).
- Switch all luminaires on (button 1), off (button 2), dim higher (button 3) or lower (button 4).
![drukknop](/sites/default/files/uploads/drukknop.jpg)
BUTTON 1 | BUTTON 2 | BUTTON 3 | BUTTON 4 | |
---|---|---|---|---|
Scenes | Scene 1 | Scene 2 | Scene 3 | Scene 4 |
Areas (on/off/dimming) | Area 1 | Area 2 | Area 3 | All areas |
General | All on | Higher dimming | All off | Dimming lower |
![](/sites/default/files/uploads/EasyDim2/SC037C3.jpg)
Recessed EasyDim2
![](/sites/default/files/uploads/EasyDim2/sensor-box.jpg)
Recessed EasyDim2 with cable and installation box
![](/sites/default/files/uploads/EasyDim2/C1C30-RenderSurfMntd_400x400_0.png)
Surface-mounted EasyDim2
![](/sites/default/files/uploads/EasyDim2/installateur_0.png)
Installer
Does the initial commissioning.
![](/sites/default/files/uploads/EasyDim2/gebouwbeheerder.png)
Building manager or facility manager
Can easily adjust parameters.
![](/sites/default/files/uploads/EasyDim2/installatie_Gebruiker.png)
The user
Selects the requested room, scene, area, dimming scenario, etc. Can change the name of the controlled rooms.
![easydim2 app](/sites/default/files/uploads/iphone_easydim.png)
Sensors
![](/sites/default/files/uploads/C1C20_01-200_Easydim2_sensor-box.jpg)
EasyDim2 - recessed (multisensor / installation box / cable)
C1C20/01-200
![](/sites/default/files/uploads/sensor%201-3b_1.png)
EasyDim2 - recessed without box (with counter plug)
C1C20-B
![](/sites/default/files/uploads/C1C30-RenderSurfMntd_400x400.png)
EasyDim2 - surface mounted (multisensor with surface-mounted housing)
C1C30
Inputs
![](/sites/default/files/uploads/C4R05_400x400.jpg)
Expansion sensor for motion detection
C4R05
![](/sites/default/files/uploads/C4R08-rcsdmnt_400x400.jpg)
Expansion sensor for motion detection - recessed
C4R08-RCSDMNT
![](/sites/default/files/uploads/C4R03_400x400.jpg)
Expansion sensor for motion detection - surface-mounted
C4R03
![](/sites/default/files/uploads/C4N60_ETAP_Push-Button-Interface_400x400_0.jpg)
Pushbutton interface
C4N60
![](/sites/default/files/uploads/C4RP4.jpg)
Pushbutton panel, 4 commands and text field
C4RP4
Accessories
![](/sites/default/files/uploads/C1A00_3-200_SC027B1.jpg)
2 m flex, 3 x 1,5 mm² with CEE7 mains plug and GST18 bus
C1A00/3-200
![](/sites/default/files/uploads/C1A20_3-3_SC027B5.jpg)
T-piece GST18, 3-pin, 1 x IN, 2x OUT (black)
C1A20/3-3
![](/sites/default/files/uploads/C1A21_3-4_SC027B6.jpg)
Distribution block GST18, 3-pin, 1 x IN, 3 x OUT (white)
C1A21/3-4
![](/sites/default/files/uploads/C1A22_5-6_SC027B8.jpg)
Distribution block GST18, 3-pin, 1 x IN, 5 x OUT (white)
C1A22/3-6
![](/sites/default/files/uploads/C1A30_3-1SC027B3.jpg)
Connector GST18, 3-pin
C1A30/3-1
3 m extension cord, 5 x 1,5 mm² with GST18 plug and GST18 bus (blue)
C1A02/5-300
T-piece GST18, 5-pin, 1 x IN, 2 x OUT (blue)
C1A22/5-3
![](/sites/default/files/uploads/C1A22_5-1_400x400.png)
Plug GST18, 5-pin (blue)
C1A22/5-1
